Description

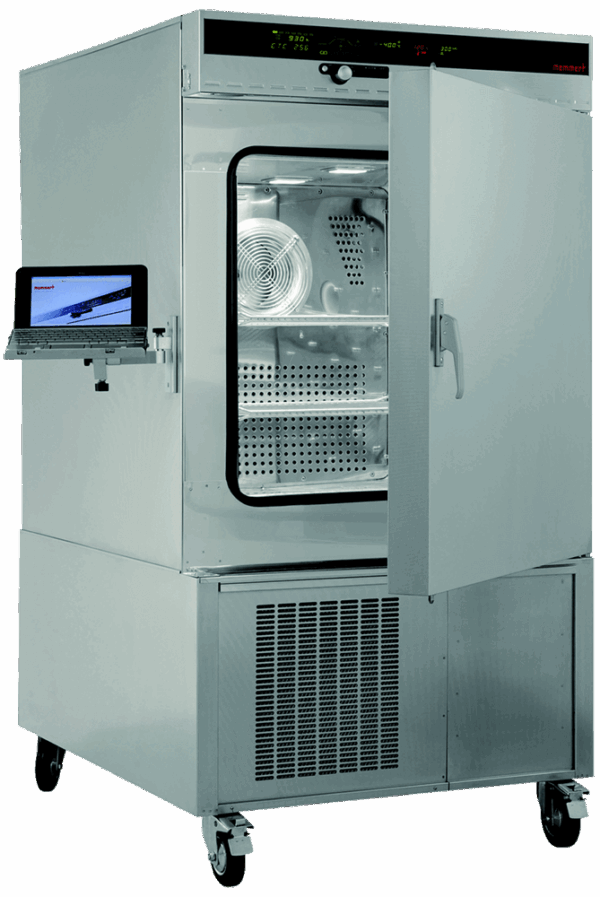

CTC256 Memmert climate test chambers guarantee the perfect atmosphere for temperature and humidity testing. Our constant climate chamber is tailored to environmental simulation, material testing and stability testing in accordance with international standards. Let us help you build the perfect environmental test chamber.
Features:
- Working temperature range without humidity: −42 °C up to 190 °C
- Working temperature range with humidity: 10 °C up to 95 °C
- Temperature distribution (spatial): 0.5 up to 2 K
- Temperature: 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
- Display: resolution of display for setpoint values 0.1 °C up to 99.9 °C, 0.5 °C from 100 °C; resolution for actual values 0.1 °C (LED)
- Humidification: by hot steam generator; humidity supply with distilled water from 2 × 10 L tanks on telescopic slide integrated in the chamber, with automatic change-over
- Humidity control: active humidifying and dehumidifying adjustable from 10–98 % rh, digital display of relative humidity, resolution 0.5 %, setting accuracy 1 %
- Dehumidification: 2 × 10 L tanks as condensate collector
- Controller: electronic microprocessor temperature controller with auto-diagnostic system
- Set-up Display: digital display of all set parameters, including temperature, weekdays, time, humidity, fan speed, program status and set-up values; language selectable via set-up
- Timer: integrated timer for tempering profiles of up to 40 ramps, each segment adjustable from 1 min. to 999 hrs.
- Calibration: three freely selectable temperature values
Stainless Steel Interior
- Volume: 256 L
- Dimensions W × H × D in mm (w(A) × h(B) × d(C)): 640 × 670 × 597 mm
- Max. number of internals: 6
- Max. loading per internal: 25 kg
Stainless Steel:
For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.
Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.
For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath use stainless steel of class W-St. 1.4301 (ASTM 304). Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless steel W-St. 1.4571 (ASTM 316Ti).
