Description

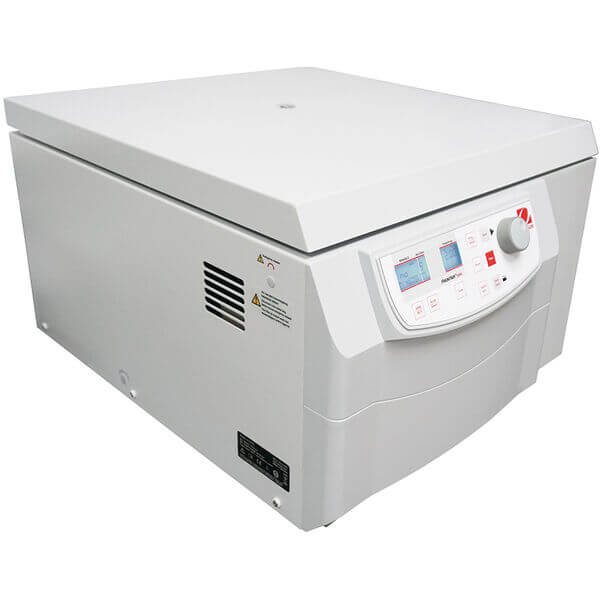

Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 11 models with capacities from 0.2 ml to 4 × 1000 ml – and feature high-speed performance at maximum volume, automatic rotor identification and safety features.
Applications
Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
Display
Backlit Liquid Crystal Display (LCD)
Operation
Designed to be used with a variety of rotors and accessories
Communication
N/A
Construction
Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid
Design Features
Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing
Aquí tienes la traducción al inglés de la sección técnica que estaba en español:
- Speed Range: 200 rpm – 16,000 rpm
- Maximum Relative Centrifugal Force: 24,325 x g
- Maximum Capacity (Rotor): 4 x 750 ml
- Program Memories: 99
- Rotor Included in Package: N/A
- Acceleration Gears: 10
- Deceleration Gears: 10
- Dimensions: 26.4 in x 15.4 in x 21.3 in (670 mm x 390 mm x 540 mm) (Length x Height x Width)
- Display: 2-line LCD with backlight
- Lid Lock: Motorized
- Net Weight: 187 lb (85 kg)
- Noise Level: ≤63±2 dB(A)
- Power: AC Adapter (Included)
- Power Consumption: 680 W
- Pre-cooling Time: N/A
- Rotor Compatibility: Fixed Angle 4 x 85ml RB ID Hi; Fixed Angle 12 x 15 ml RB/FA ID; Fixed Angle 6 x 250 ml FB ID; Fixed Angle 24 x 1.5 / 2.0 ml ID Sealable; Fixed Angle 6 x 50 ml RB ID Hi; Swing out 4 x 100 ml ID; Fixed Angle 12 x 1.5 / 2.0 ml ID; Fixed Angle 4 x 8-place PCR Strip ID; Fixed Angle 44 x 1.5 / 2.0 ml ID; Swing out 4x750ml ID Sealable; Swing out 4 x 100 ml ID Sealable; Fixed Angle 6 x 85 ml RB ID; Fixed Angle 24 x 1.5 / 2.0 ml ID; Fixed Angle Rotor 4x500ml ID; Fixed Angle 6 x 85 ml RB ID Hi; Fixed Angle 30 x 15 ml RB/FA ID; Fixed Angle 30 x 1.5 / 2.0 ml ID Sealable; Fixed Angle 10 x 50 ml FA ID; Fixed Angle 64 x 0.5 ml ID; Fixed Angle 20 x 10 ml RB ID Hi; Fixed Angle 6 x 50 ml RB/FA ID; Swing out 2 x 3MTP ID
- Rotor Recognition Method: Automatic
- Running Time: Continuous; Quickspin; 10 s to 99 h 59 min 59 s
- Safety Certification: CE; FCC
- Working Environment: 41°F – 95 °F, 80% RH, non-condensing (5°C – 35°C, 80% RH, non-condensing)
