Description

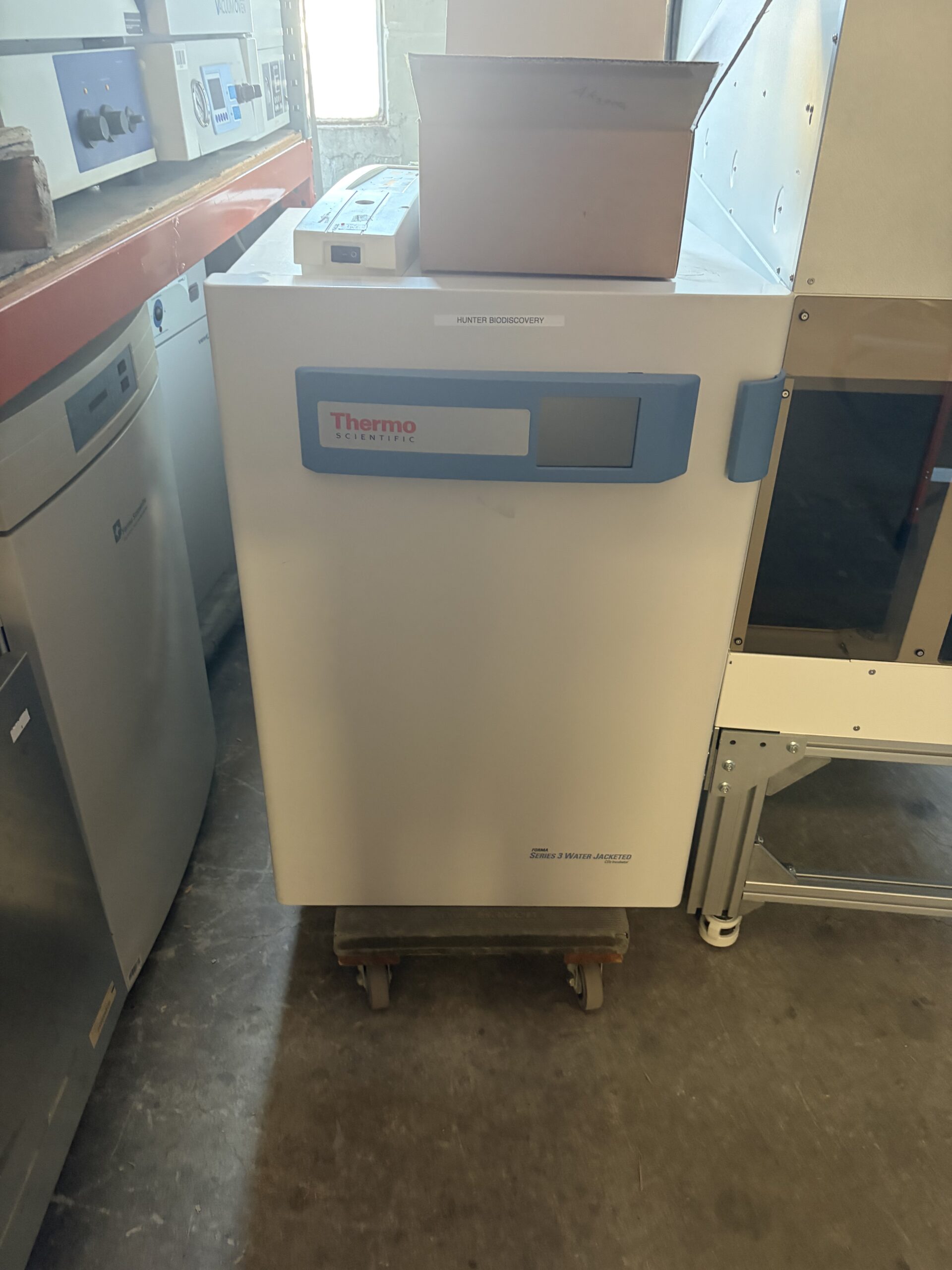

The Thermo Scientific Forma Series 3 Water Jacketed CO2 Incubator (Model 4110) delivers stable and uniform cell culture conditions through an advanced water-jacketed design paired with Thermo’s iCAN touchscreen interface, offering a straightforward, effortless way to control and monitor the incubator’s environment. Its unique triple-wall construction provides outstanding temperature uniformity and stability, offering protection for valuable cell cultures against ambient temperature swings and unexpected power outages. The unit features a 184 L (6.5 cu. ft.) polished stainless steel chamber with coved corners for easy cleaning, along with a heated dual-pane inner glass door designed to minimize condensation. Its integrated HEPA air filtration system continuously filters the entire chamber volume every 60 seconds, minimizing the risk of airborne contaminants from repeated door openings — making it well suited for sensitive cell culture, tissue engineering, microbiology, and broader research applications requiring reliable, long-term incubation with minimal maintenance.
Features:
- Water-Jacketed Triple-Wall Construction: Delivers outstanding temperature uniformity and stability, even during power outages or ambient temperature swings.
- iCAN Touchscreen Interface: Bright, door-mounted display for complete data visibility and easy monitoring/control.
- In-Chamber HEPA Filtration: Continuously filters the entire chamber volume every 60 seconds to minimize airborne contamination.
- Heated Dual-Pane Inner Glass Door: Minimizes condensation and enables faster temperature recovery.
- In-Chamber Fan: Gently distributes air throughout the chamber for homogeneous conditions.
- Tool-Free Removable Shelving: Stainless steel shelves and supports can be removed without tools for easy cleaning or adjustment.
- Auto-Start Function: Automatic system recovery after power interruptions.
- Configurable Alarms & Interface: Audible on/off, access code, HEPA filter change reminder, RS-485 interface, and selectable temperature/RH or CO2/O2 display.
Specifications:
- Capacity: 184 L (6.5 cu. ft.)
- Chamber material: Polished stainless steel
- CO2 range: 0–20%
- CO2 sensor: TC (thermal conductivity) sensor
- Oxygen control: None (standard configuration)
- Interior dimensions: 20.0″ x 21.3″ x 26.8″
- Exterior dimensions: 25″ x 26″ x 39.5″
- Weight: 365 lb
- Power: 115V, 50/60 Hz (230V also available)
- Data outputs: USB; optional 4-20mA
