Description

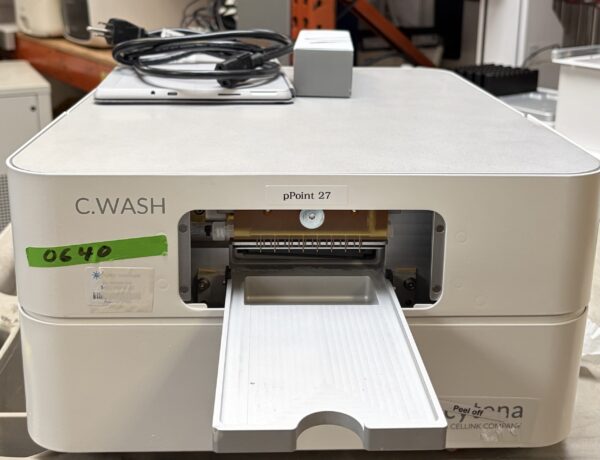

The C.WASH is an innovative plate washer designed for automated and contactless washing of microtiter plates. It is the perfect solution for labs focusing on cell-based assays and immunoassays. The C.WASH assists labs in enhancing data quality and improving reproducibility while saving time and lowering costs.
Features:
-
Non-contact washing: Avoid carryover and cross contamination thanks to non-contact dispensing and liquid removal.
-
Supports multiple plate sizes: Versatile instrument capable of gently removing liquid from any SBS format, 96- and 384- well plates.
-
Low residual volume: Unmatched washing efficiency with residual volumes <0.1 µl reduces the number of washing cycles required.
-
Fast and automated: Fully automated and stand-alone operation makes it possible to complete 1 wash cycle in 96- or 384-well plates in under 1 minute.
Specifications:
- Plate Compatibility: 96 and 384 well plates, with a height of 14.4mm
- Residual Volume: < 0.1 μL per well for all plate formats
- Centrifugal Forces: 5 to 3500 rpm
- Dispense head: 8-needle, 16-needle
- Liquid inputs: Auto switching (internal) for up to 4 liquid input channels
- Dispensing accuracy & precision (standard dispenser): < 5% @300 µL across the plate,
< 3% (CV) @300 μL - Deadvolume internal (tube volume): 8 ml
- Deadvolume (liquid switch/priming): 4 ml
- Volume range standard dispenser: 8-needle dispense head: > 10 μL
16-needle dispense head: > 5μL - Dispense speed – 96-well (50µl): 16 seconds
- Dispense speed – 384-well (25µl): 21 seconds
- Processing speed 96-well 1 wash cycle: ≤ 47 seconds
- Processing speed 96-well 2 wash cycles: ≤ 81 seconds
- Processing speed 384-well 1 wash cycle: ≤ 52 seconds
- Processing speed 384-well 2 wash cycles: ≤ 85 seconds
- Liquid Waste System: Active Pump for rapid liquid removal from wash drum
Misc - User interface: Touchpad (included)
- Automation: SiLA2 interface is compatible with third-party integration
- Washing efficiency > 99.5% after 1 wash cycle,
> 99.99% after 2 wash cycles - Dimensions (W x D x H): 385 x 600 x 205 mm
- Weight: 25 kg
