Description

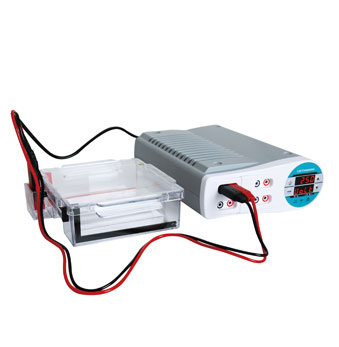

- The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives.
- Detachable electrode assembly allows for easy cleaning and maintenance.
- Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time.
- Diverse-sized molded gel trays and casters for leak-free casting.
- 181x206mm (1ea) gel tray with max. six comb positions.
- Double-sided combs are provided depending on each model: 1.5mm thick 20-and 31-well comb (2ea), 1mm thick 20-and 31-well comb (2ea), 1.5mm thick 16-and 20-well comb (2ea), 1mm thick 16-and 20-well comb (2ea), 1.5mm thick 25-and 34-well comb (2ea), 1mm thick 25-and 34-well comb (2ea).
- 31-well comb and 16-well comb for matching multichannel pipettes.
- Suitable for large amounts of sample screening- up to 186 samples at once using 6 combs in EP-18 gel tray.
- Comb-setting grooves in gel trays or caster prevents sliding of combs.
- Adjustable gel length.
- Flat, uniformly thick gels are formed by built in level maker on the gel tray and level bubble on the gel castor.
Specifications
- Includes electrophoresis unit (tank & lid, electrode, power cord)
- Includes 1 gel caster
- Includes 1 gel tray
- Includes 20/31 well comb (1.0 mm) × 2ea
- Includes 20/31 well comb (1.5 mm) × 2ea
- Includes 16/20 well comb (1.0 mm) × 2ea
- Includes 16/20 well comb (1.5 mm) × 2ea
- Includes 25/34 well comb (1.0 mm) × 2ea
- Includes 25/34 well comb (1.5 mm) × 2ea
- Buffer capacity: 1.8 L / 0.07 cu ft
- Tank dimensions: 387 × 214 × 70 mm / 15.2 × 8.4 × 2.8″
- Gel caster dimensions: 167 × 264 × 30 mm / 6.6 × 10.4 × 1.2″
- Gel tray dimensions: 180 × 205 × 29 mm / 7.1 × 8.1 × 1.1″
- Comb dimensions: 158 × 46 mm / 6.2 × 1.8″
- Net weight: 0.93 kg / 2.05 lbs
