Description

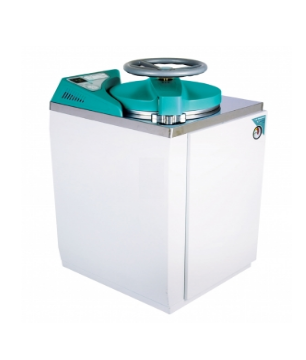

The JeioTech ST-105G is a 230V vertical autoclave engineered for dependable, high-volume steam sterilization in laboratory, clinical, and research environments. With a generous 105-liter top-loading chamber, the unit is well-suited for sterilizing glassware, instruments, media, and other bulky lab items in a single cycle. Its microprocessor-based control system delivers precise temperature regulation and automated cycle management, helping ensure consistent, repeatable sterilization results with minimal manual intervention. The corrosion-resistant stainless steel chamber construction supports long-term durability under repeated sterilization cycles. As received and unboxed, this unit is equipped with two covers, an exhaust tank, and a drain bucket, providing a complete setup ready for standard sterilization workflows.
Features:
- Vertical Top-Loading Design: Allows for efficient sterilization of large or bulky items, with stackable basket compatibility to maximize chamber space.
- Microprocessor Control: Automated temperature calibration ensures precise, repeatable sterilization cycles with minimal operator input.
- Dual-Cover Configuration: Two covers provide flexibility for loading and unloading operations.
- Integrated Exhaust Tank: Manages controlled steam venting and pressure release during and after cycles.
- Drain Bucket: Collects condensate and waste fluid for easy disposal and cleanup.
- Stainless Steel Chamber: Offers corrosion resistance and supports easy cleaning and long-term durability.
- Multi-Layer Safety Systems: Includes over-pressure, over-temperature, and low-water-level protections to safeguard users and samples.
- Dual-Frequency Compatibility: Operates on 50/60Hz, allowing flexible use across different power grid standards.
Specifications:
- Voltage: 230V
- Frequency: 50/60Hz
- Chamber Capacity: 105L (3.7 cu ft)
- Sterilization Temperature Range: 110–123°C (230–253.4°F)
- Melting Temperature Range: 60–100°C (140–212°F), for liquefying agar media
- Timer Range: 0–999 minutes
- Door Opening Dimensions (W x D x H): approx. 1012 x 672 x 1245 mm (39.84″ x 26.46″ x 49.01″)
- Chamber Type: Vertical, top-loading, stackable basket compatible
- Chamber Material: Stainless steel (corrosion-resistant)
- Control Type: Microprocessor controller with automated temperature calibration
- Display: VFD display showing temperature, time, and operational status; LED indicators for cycle progress
- Pressure Monitoring: Analog pressure gauge (front-mounted)
- Operation Modes: Pre-set modes for decontamination, solids, and liquids; programmable custom modes
- Cycle Sequence: Heating → Safety Check → Sterilization → Exhaust → End
- Safety Features: Over-pressure protection (automatic and manual safety valves), over-temperature limiter with automatic power cutoff, over-current/electrical fuse protection
- Warning Alarms: Over-temperature, low-temperature, low water level, low heat, sterilization failure
- Covers: 2
