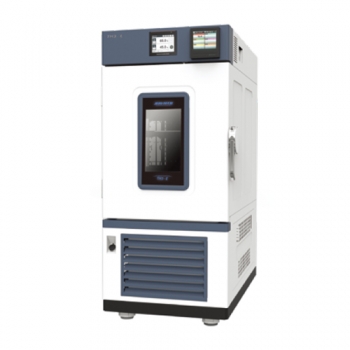

Description
Differentiated Systems
- Convenient operation with 5.6 inch color touch display controller.
- Possible to check the operation status with graphs.
- Minimize the occurrence of faults by simplifying water direct line and electric circuit.
- Water level check function enables water replenishment at the right time.
Structural functional features
- Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
- The door part is a double-sealed structure that provides enhanced airtightness.
- Maintains stable temperature and humidity by circulating air in the chamber at the optimum speed.
- Energy-saving system that can perform optimum temperature and humidity tests efficiently, reducing power consumption during operation.
Outstanding Safety
- Electronic over temperature shutdown system. (advanced over temperature (A-OT) limiter)
Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown. - General-type over power shutdown system. (B-OT, backup over temperature limiter)
A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors. - Ensures that the surface temperature is kept below 60°C.
- Low and empty water level alarm and automatic shut off.
- Door open warning and automatic shut off.
- Overcurrent and short circuit protection of device.
- Fuse installed for each heater for safety.
- Auto stop when operating current of compressor is overloaded.
- Auto stop when compressor is overheating.
- Auto shut off in case refrigerant pressure (high/low pressure) is abnormal.
Use Convenience Features
- Efficient water supply and recirculation system minimizes water refilling even for long-term high-humidity tests.
- Direct water supply system. (option)
- Easy observation of samples with tempered glass door with built in heating wire and LED lamp.
- A structure that allows the door to be opened and closed easily.
- Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Multifunction Control System
- Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port.
- Reliable control with temperature/humidity auto-tuning and temperature calibration.
- PID zone subdivided into 9 zones for more precise control stability.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
- Convenient checking with useful graph display.
Specifications
- Dimensions and Structure
- Chamber Volume: 398 Liters / 14.1 cu ft
- Interior Width: 600 mm / 23.6 inches
- Interior Depth: 830 mm / 32.7 inches
- Interior Height: 800 mm / 31.5 inches
- Net Weight: 270 kg / 595.2 lbs
- Cable Port Diameter: 65 mm / 2.6 inches
- Water Tank Capacity: 20 Liters / 0.7 cu ft
- Shelves and Load
- Quantity of Shelves (Standard / Max): 2 / 10
- Distance Between Shelves: 40 mm / 1.6 inches
- Max. Load Per Shelf: 25 kg / 55.1 lbs
- Permitted Total Load: 60 kg / 132.3 lbs
- Temperature Data (Without Humidity)
- Temperature Range: 0 to 90 ℃ / 32 to 194 ℉
- Fluctuation: 0.5 ℃ / 0.9 ℉
- Variation: 0.8 ℃ / 1.44 ℉
- Heating Time (0℃ to 90℃): 80 minutes
- Cooling Time (90℃ to 0℃): 90 minutes
- Humidity
- DataHumidity Range: 35 to 85 %RH
- Fluctuation: $pm$1 %RH
- Variation: $pm$3 %RH
- Electrical
- DataElectrical Requirements: AC 230V, 1 phase, 50/60Hz
- Current Consumption: 16A
