Description

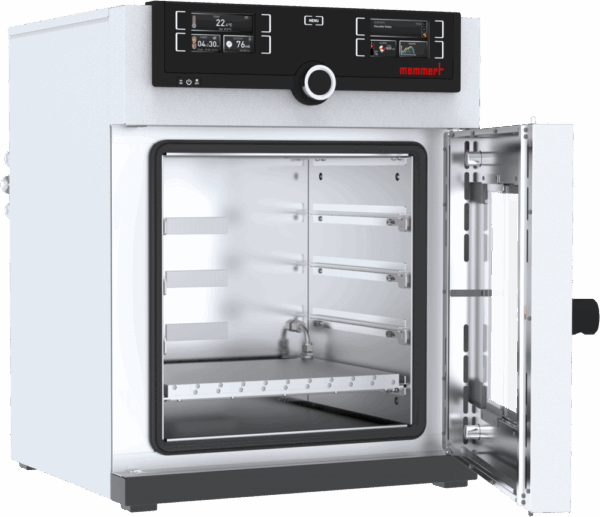

The direct contact between the load and the heatable thermoshelves in the chamber of the vacuum oven ensures rapid and uniform temperature control of food, cosmetics, watches, books, PCBs or injection molds, without the loss of heat.
Features:
- ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- Adjustable Parameters: temperature (Celsius or Fahrenheit), pressure (vacuum), program time, time zones, summertime/wintertime
- Function SetpointWAIT: the process time does not start until the set temperature is reached
- Language Setting: German, English, Spanish, French, Polish, Czech, Hungarian, Italian
- Temperature control: Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
AutoSAFETY: Additionally integrated over- and undertemperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature - Auto diagnostic system: Integral fault diagnostics for temperature and humidity control
- Alarm: visual and acoustic
Specifications:
- Volume: 49L
- Width: 385 mm
- Height: 385 mm
- Depth: 330 mm
- Number of Stainless Steel Grids (Standard Equipment): 1
- Maximum Loading of Chamber: 20 kg
- Set temperature range: from +5°C up to +90°C
- Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
- Vacuum range: 5 to 1100 mbar
- Permitted final vacuum: 0.01 mbar
- Maximum leakage rate: 0.01 bar/h
- Pump control: speed control, optimized rinsing procedures for the pump membranes as well as signal for pump ON/OFF
- Connection: Vacuum connection with small flange DN16, and gas inlet with small flange DN16
- Pressure control: Digital electronic pressure control for a speed-controlled vacuum pump. Tubing for vacuum and air are made of material 1.4571 (ASTM 316 Ti). Programmable, digitally controlled inlet for air.
