Description

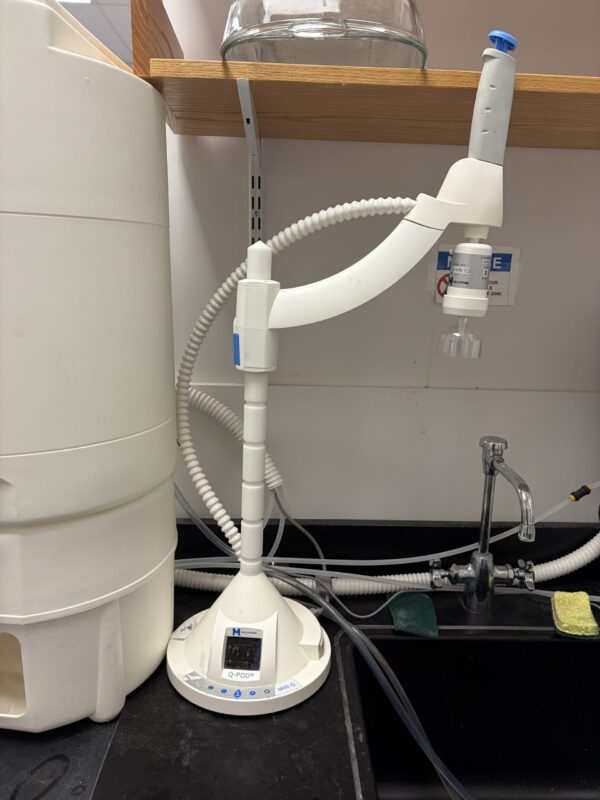

The Milli-Q Q-POD is an intelligent remote dispenser designed to provide flexible, ergonomic access to Type 1 ultrapure water at the point of use. It’s built for use with Milli-Q IQ 7000 and IQ 7003/7005/7010/7015 water purification systems, and up to four Q-POD units can be connected to a single production unit, making it well suited for labs with multiple workstations needing convenient water access. The dispenser features a large touchscreen interface and an articulating arm that adjusts to accommodate different sizes and shapes of laboratory glassware, along with a precise dispensing wheel capable of both slow, drop-by-drop delivery and fast flow rates for a range of applications.
Features:
- Flexible Multi-Point Dispensing: Up to 4 Q-POD units can be connected to a single Milli-Q water purification system.
- Adjustable Positioning: Over 1,500 possible dispenser positions (up to 30 horizontal notched positions, 360° rotation, and 54 vertical notched positions) to adapt to different glassware.
- Precision Dispensing Wheel: Delivers water from precise drop-by-drop dosing up to a fast 2 L/min flow rate.
- Large Touchscreen Interface: 5-inch touchscreen provides access to a wide range of system applications and functions.
- Data Export Capability: Built-in USB port for easy data export.
- Remote Installation Flexibility: Can be installed 2 or 5 meters from the main production unit, depending on connector type.
- Volumetric & Manual Dispensing: Supports both manual dispensing and precise volumetric dispensing modes.
- Ergonomic, Compact Design: Detachable dispenser with a movable arm for easy positioning at the bench.
Specifications:
- Water quality: Type 1 ultrapure water
- Flow rate: Up to 2 L/min
- Display: 5-inch touchscreen
- Positioning: 30 horizontal (360°) x 54 vertical notched positions (1,500+ combinations)
- Connector distance: 2 m or 5 m (model-dependent)
- Compatible systems: Milli-Q IQ 7000, IQ 7003/7005/7010/7015
- Max units per system: Up to 4 Q-PODs
