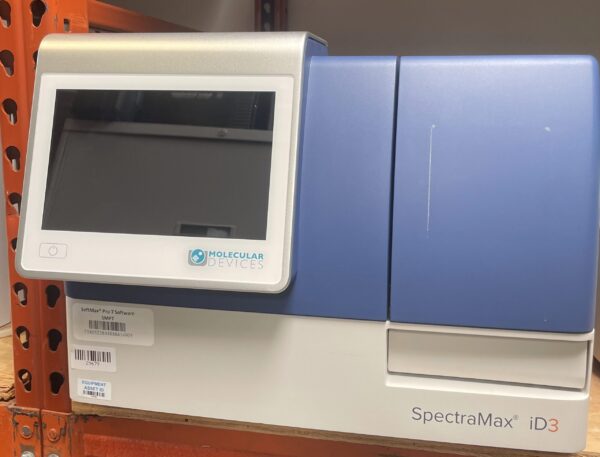

Molecular Devices SpectraMax iD3 Microplate Reader

Cambridge Scientific ID: 29275 Category: Tag:

Description

The SpectraMax iD3 and iD5 Multi-Mode Microplate Readers measure absorbance, fluorescence, and luminescence. In addition, the iD5 reader measures TRF and FP and can be expanded to include TR-FRET, HTRF, BRET, dual luciferase reporter assays with injectors, and western blot detection. With optimized reagents, option to operate the readers using the touchscreen or a computer, and industry-leading SoftMax Pro Software, the readers provide an all access pass for breakthrough research.

Specification:

  • Read modes:
        • Absorbance
        • Fluorescence (top/bottom read),
        • Luminescence (top read)
  • Wavelength ranges:
        • Abs: 230 – 1000 nm
        • FL Ex: 250 – 830 nm
        • FL Em: 270 – 850 nm
        • Lumi: 300 – 850 nm
  • Wavelength selection: Monochromator tunable in 1-nm increments
  • Absorbance photometric accuracy/linearity: < ±0.010 OD ±1.0%, 0 – 3 OD VIS 0 – 3 OD UV
  • Absorbance photometric precision/repeatability: < ±0.003 OD ±1.0%, 0 – 3 OD VIS 0 – 3 OD UV
  • Sensitivity top read optimized:
        • FL:1 pm fluorescence 96 well
        • 1 pm fluorescein 384 well
        • Lumi: 2 pm ATP 96 well, 4 pm
  • Light source(s): High power xenon flash lamp
  • Detector(s): Silicon photodiode, Ultra-cooled photomultiplier tube
  • Read types (endpoint, kinetic, etc): Endpoint, Kinetic, Spectrum scan, Well scan
  • Read times:
        • Abs: 28 seconds,
        • FL: 21 seconds
        • Lumi: 21 seconds
  • Plate shaking: Linear, Orbital, Double orbital
  • Plate type(s): 6-384 well plates
  • Temperature control: Ambient + 5°C to 66°C
  • Dimensions: H 40.1 cm x W 53.2 cm x D 59.8 cm
  • Validation tools:
        • Absorbance validation plate
        • Fluorescence validation plate
        • Luminescence validation plate
        • SoftMax Pro GxP Software
