Description

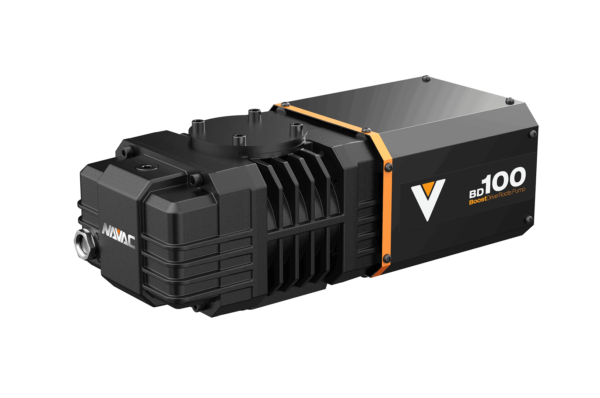

BoostDrive is a high-speed roots-style blower designed to enhance your backing pump in a compact design. With performance in mind, pump downtime is decreased while optimizing ultimate vacuum pressure. This unique design makes it an excellent choice for various industries, including chemical processing, pharmaceutical manufacturing, and semi-conductor coating.
- Performance: With pumping speed up to 600 m3/h, this roots-style blower will outperform pumps twice its size.
- Compact Design: As one of the most innovative designs, this dry roots-style blower delivers fast pumping speed in an ultra-compact package.
- System flexibility: Designed with flexibility in mind, this roots-style blower can be paired with a backing pump to optimize pumping efficiency.
Technical Specification
- Pumping Speed (50 Hz): 160 m³/h (94 CFM)
- Pumping Speed (60 Hz): 190 m³/h (112 CFM)
- Recommended Backing Pump: ED30 / DD48
- Ultimate Pressure without Gas Ballast:
2.2 × 10⁻⁴ Torr
3.0 × 10⁻⁴ mbar - Max Permissible Pressure Difference:
50 Torr
66 mbar - Cooling Method: Air
- Inlet / Exhaust: VG50 / VF50
- Noise Level: 62 dB(A)
- Communication: None
- Oil Type: Hydrocarbon
- Recommended Oil: NPO100
- Oil Capacity: 0.5 L (gear end)
- Motor Power: 0.37 kW (0.5 HP)
- Power Supply: Three Phase, 220–230 V @ 50 Hz, 220–230 V @ 60 Hz
- Weight: 51 lb (23 kg)
- Dimensions: 19 × 8 × 6 in (493 × 211 × 160 mm)
