Description
Description

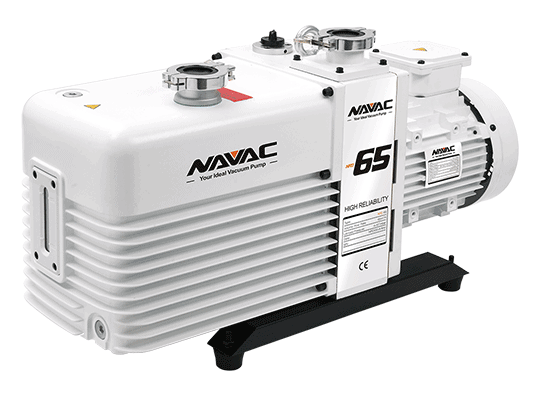

- Dual Stage Oil Sealed Rotary Vane Vacuum Pump
- cUL Approved
- Two Shift Adjustable Gas Ballast Valve
- Anti-suck back Design
- Forced Oil Circulation System
Technical Specification
-
- Pumping Speed (50 Hz): 59 m³/h (35 CFM)
- Pumping Speed (60 Hz): 71 m³/h (42 CFM)
- Ultimate Pressure without Gas Ballast:
1.5 × 10⁻³ Torr
2.0 × 10⁻³ mbar - Ultimate Pressure with Gas Ballast:
6.0 × 10⁻³ Torr
8.0 × 10⁻³ mbar - Cooling Method: Air
- Inlet / Exhaust: KF40 / KF40
- Noise Level: 62 dB(A)
- Communication: None
- Oil Type: PFPE
- Recommended Oil: 25/6
- Oil Capacity: 4.5 L
- Motor Power: 2.2 kW (2.95 HP)
- Power Supply: Three Phase, 200–220 / 380–415 V @ 50 Hz, 200–230 / 460 V @ 60 Hz
- Protection Rating: IP44
- Weight: 143 lb (65 kg)
- Dimensions: 29 × 9 × 14 in (730 × 234 × 358 mm)
