Description

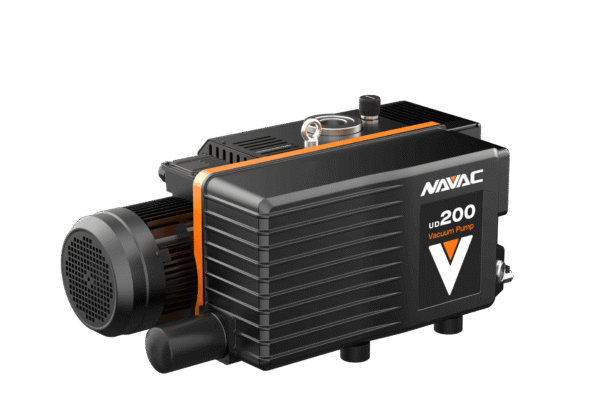

UniDrive is a single-stage, oil-sealed rotary vane vacuum pump optimized for applications with high moisture content. Engineered with performance in mind, UniDrive offers unmatched reliability for industries such as food processing and packaging.
Integrated Oil Mist Filter: High-efficiency oil mist filters prevent oil vapor from exhausting into the equipment space and smoking while also prolonging the service life.
Gas Ballast: Adjustable gas ballast allows for the different requirements of condensable gas to be exhausted
Proprietary Motor: In-house designed and manufactured AC motor provides longevity and robust operation.
Pumping speed (60Hz) m3/h (CFM) 24 (14)
Ultimate Pressure without Gas Ballast Torr (mbar) GB always open
Ultimate Pressure with Gas Ballast Torr (mbar) 1.5×10-1 (2.0×10-1)
Cooling Method Air
Inlet / Exhaust G3/4″ / Filter
Noise level dB(A) 70.5
Communication None
Oil Type Hydrocarbon
Recommended Oil NPO46
Oil capacity Liters 0.45
Motor Power kW (HP) 0.9 (1.21)
Power Supply Single Phase, 115V, 60 Hz
IP Level IP54
Weight lbs (kg) 43 (20)
Dimensions Inches (mm) 13 x 10 x 9 (318 x 249 x 218)
