Description

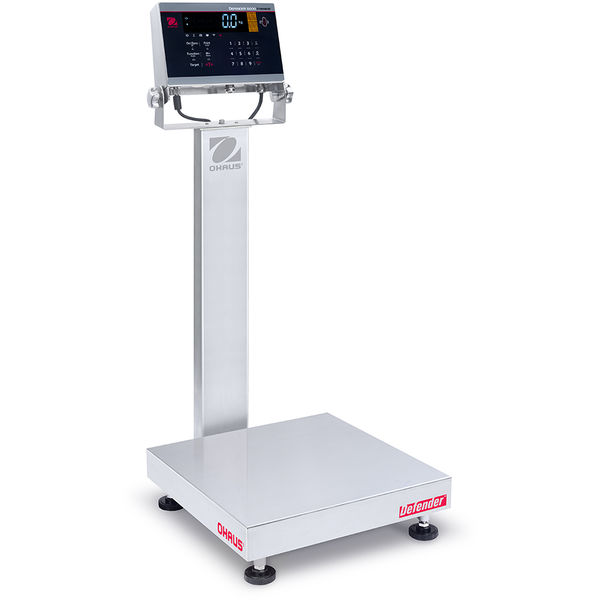

The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options: The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.
Applications
Weighing, Counting with APW Optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold
Display
6-digit, 7-segment white LED, 20 mm high digits
Operation
100-240 VAC / 50/60 Hz universal power supply, hardwired
Communication
Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
304 stainless steel platform and frame, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel, IP67 load cell
Design Features
150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet
- Maximum Capacity: 50 lb (25 kg)
- Readability: 0.002 lb (1 g)
- Readability (Certified): 0.01 lb (5 g)
- Platform Size: 18 in x 18 in (457 mm x 457 mm)
- Legal for Trade: NTEP Certified; Measurement Canada Approved
- Power: Rechargeable Battery (Not Included); AC Power (Included)
- Battery Life: Not Applicable
- Communication: Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory)
- Dimensions: 24.7 in x 37.3 in x 18 in (627 mm x 947 mm x 457 mm) (LxHxW)
- Display: 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
- Net Weight: 44.1 lb (20 kg)
- Outputs: 4-20 mA; 0–10V; 2 In/4 Out digital I/O
- Platform Construction: Stainless Steel
- Protection Rating: IP69k; IP68
- Second Scale Input: Not Applicable
- Tare Range: To capacity by subtraction
- Units of Measurement: Gram; Kilogram; Pound; Ounce; Pound:Ounce
- Working Environment: 14°F to 104°F, 80% RH, non-condensing (-10°C to 40°C, 80% RH, non-condensing)
