Description

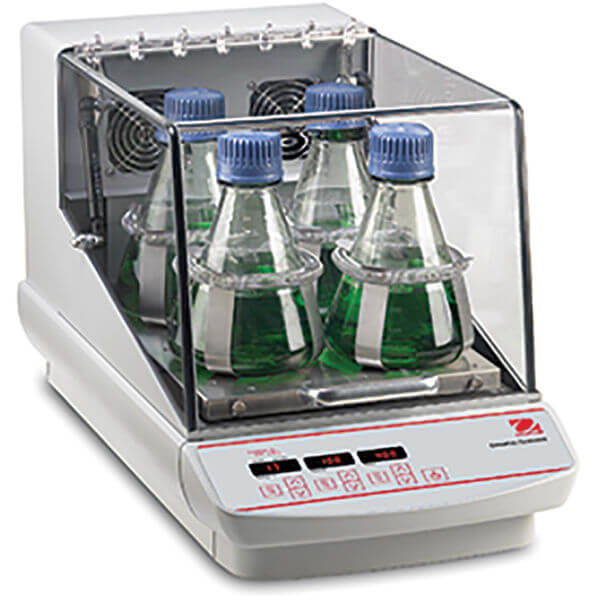

Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.
Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Operation
N/A
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
- Motion: Orbital, 25 mm
- Capacity: 50 lb (22.7 kg) @ 125 rpm, 10 lb (4.53 kg) @ 500 rpm
- Temperature Range: Ambient +5°C to 65°C
- Speed Range: 15 rpm to 500 rpm
- Tray Size: 18 in x 18 in (457 mm x 457 mm) (LxW)
- Control: Digital
- Calibration: Temperature calibration
- Communication: RS232
- Dimensions: 32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW)
- Drive System: Triple Eccentric; Brushless DC Motor
- Inner Dimensions: 20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW)
- Net Weight: 224.07 lb (101.6 kg)
- Power: 120V, 8A, 50/60Hz
- Power Consumption: 800 W
- Safety Certification: TUV
- Speed Accuracy: Above 100 rpm +/- 1%, Below 100 rpm +/- 1 rpm
- Timer: 1 s to 9,600 min
- Tray Construction: Aluminum
- Uniformity: ± 0.5°C at 37°C
- Working Environment: 59°F to 90°F, 80% RH, non-condensing (15°C to 32°C, 80% RH, non-condensing)
