Description

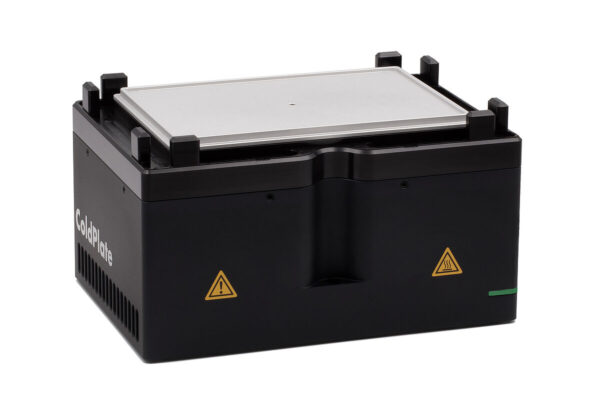

The QInstruments ColdPlate is a high-performance, static (non-shaking) thermal module engineered specifically for seamless integration onto automated liquid-handling robotic decks (such as Tecan, Hamilton, Beckman Coulter, and Agilent). Combining high-precision heating with active Peltier cooling, this ultra-compact unit provides rapid temperature cycling and exceptional thermal uniformity. It is the ideal solution for automated applications requiring stable, vibration-free temperature control of reagents, kits, enzymes, and biological samples.
Features:
-
Vibration-Free Static Design: Operating purely as a heating and cooling block with no moving mechanical parts, it ensures completely stable, vibration-free environments directly adjacent to precise robotic pipetting channels.
-
Exceptional Thermal Uniformity: Features an advanced internal design that delivers a temperature uniformity of $pm$0.5°C across the central assay ranges, effectively eliminating “edge effects” in delicate biological microplate assays.
-
Rapid Thermal Ramp Rates: Achieves rapid heating and cooling speeds of up to 12°C per minute above ambient temperatures, executing major thermal transitions (such as room temperature to 95°C) in under 6 minutes.
-
All-in-One Internal Microcontroller: Houses an internal 32-bit ARM Cortex microprocessor to handle all operations locally. This eliminates the need for bulky external controller boxes and maximizes workspace beneath the deck.
-
Standardized Footprint & Adaptability: Built to match standard ANSI-SLAS / SBS format automated carriers. The top plate supports a wide catalog of single-point, quick-exchange magnetic adapters for standard microplates, PCR plates, deep-well blocks, and tube racks.
-
Robust Construction: Fully enclosed in a premium, chemical-resistant anodized aluminum housing built to withstand the rigorous daily workflow of high-throughput industrial and clinical laboratories.
Specifications:
- Operation Mode: Static Heating and Active Peltier Cooling (No Shaking)
- Temperature Control Range: -20°C to 99.9°C
- Temperature Settings: Adjustable in 0.1°C increments
- Temperature Accuracy: ±0.1°C
- Temperature Uniformity: ±0.5°C (at 45°C) / ±1.0°C (at 4°C and 95°C)
- Cooling/Heating Speed: ~12°C/min (above room temp) | ~6-12°C/min (below Room Temp)
- Communication Interface: RS232/USB via serial adapter (Standard QInstruments remote command set)
- Housing Material: Chemical-resistant anodized black aluminum
- Power Consumption: 85 Watts (Effective) / 108 Watts (Maximum)
- Power Supply Requirements: 24 VDC input via a 120W external power adapter
- Dimensions (W x D x H): 14.2 x 9.9 x 7.9 cm, 5.59 x 3.90 x 3.11 in
- Weight: 1.4 kg, ~3.09 lb
** When running the ColdPlate at low temperatures (below ambient room temperature) for extended periods, condensation will naturally form on the surface. It is recommended to program a brief heating cycle between automation runs to easily evaporate moisture buildup.
