Description

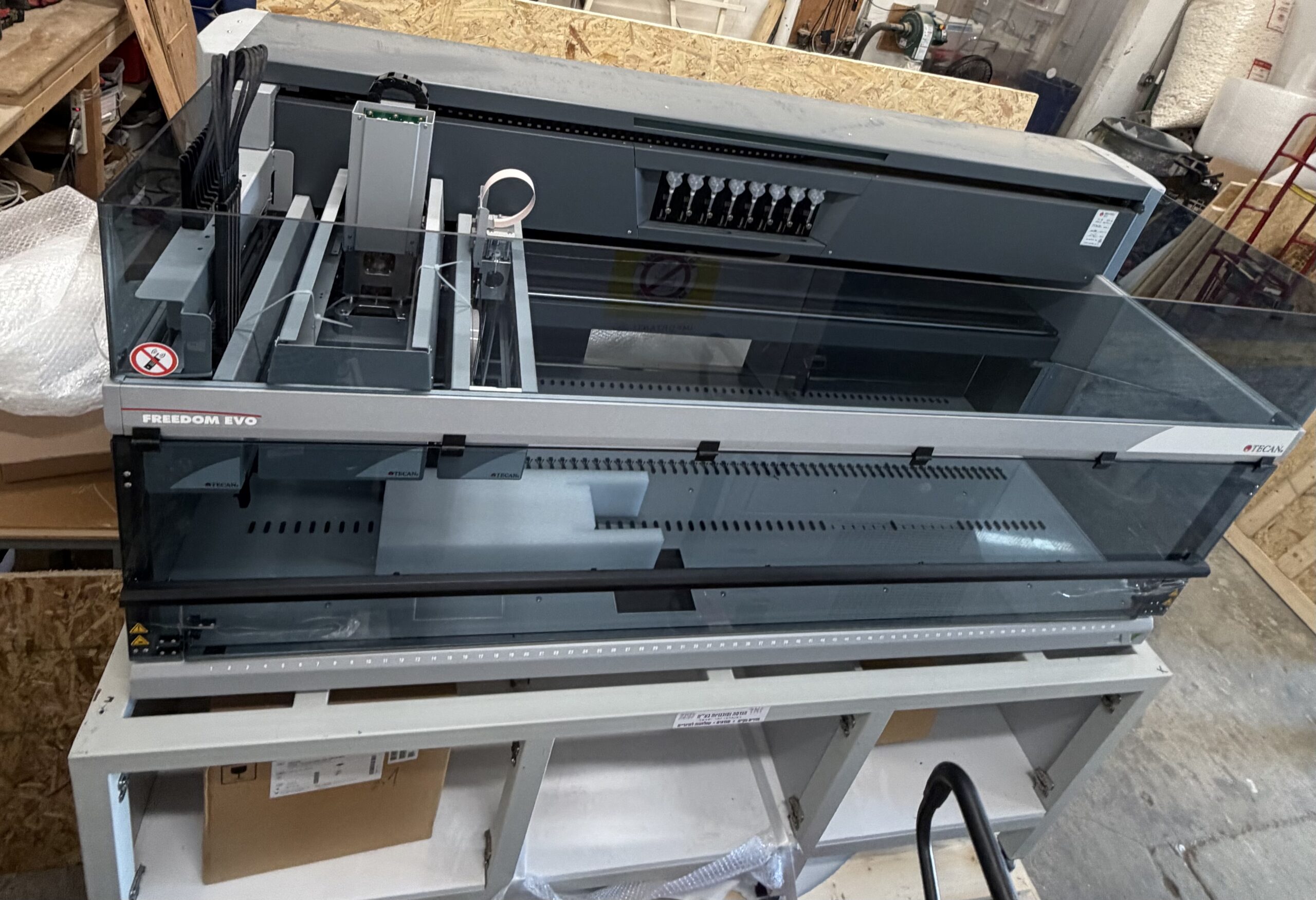

The Tecan Freedom EVO-2 200 is the largest and most advanced platform in Tecan’s Freedom EVO series, designed to meet the demands of high-throughput laboratories requiring extensive automation. It features an extensive worktable with up to 69 grids of workspace, modular architecture, and the capacity to integrate up to three robotic arms simultaneously, allowing complex, multi-step liquid handling protocols to be automated with high reliability. Pipetting arms are available in 2-, 4-, or 8-channel configurations and can be combined with 96- or 384-channel pipetting heads, giving labs the flexibility to tailor the system to their specific throughput and application needs. With Tecan’s proprietary Te-PS (Tecan Positioning System) technology, the platform delivers high-precision positioning even for dense microplate formats up to 1536 wells, ensuring reproducible, robust results across a broad range of volumes, from 0.5 µL up to over 5 mL. The system is compatible with a wide array of peripherals and accessories, including incubators, microplate readers and washers, magnetic and vacuum separation systems, and shakers, making it a highly extensible platform for large-scale and high-throughput workflows such as nucleic acid purification, sample prep, and general automated liquid handling.
Features:
- Extended Worktable: Up to 69 grids of workspace, the largest in the Freedom EVO series.
- Multi-Arm Capacity: Supports integration of up to three robotic arms for complex process automation.
- Flexible Pipetting Configurations: 2-, 4-, or 8-channel arms, combinable with 96- or 384-channel pipetting heads.
- High-Precision Positioning: Te-PS (Tecan Positioning System) technology ensures reproducible results even with high-density microplates (up to 1536 wells).
- Broad Volume Range: Handles liquid volumes from 0.5 µL to over 5 mL.
- Flexible Tip Options: Supports disposable tips (with or without filters) and washable tips with solvent- and bio-resistant coatings.
- Advanced Liquid Handling Monitoring: Active liquid level detection, pressure monitoring during pipetting, and secure tip ejection to prevent cross-contamination.
- Extensive Peripheral Compatibility: Integrates with incubators, microplate readers/washers, magnetic and vacuum separation systems, shakers, and more.
- RoMa Robot Arm: Equipped with centric gripper for plate/labware transport (base configuration).
- PosID Barcode Scanner: Included in base configuration for sample/labware tracking.
Specifications:
- Worktable capacity: Up to 69 grids
- Max robotic arms: Up to 3
- Pipetting channel options: 2, 4, or 8 channels
- Pipetting head options: 96- or 384-channel
- Volume range: 0.5 µL – 5+ mL
- Max plate density: Up to 1536 wells
- Base configuration includes: PosID barcode scanner, liquid handling module for disposable tips, 4x 1mL and 4x 5mL syringes, RoMa robot arm with centric gripper
- Power: 230V, 50/60Hz, 1200W (typical configuration)
