Description

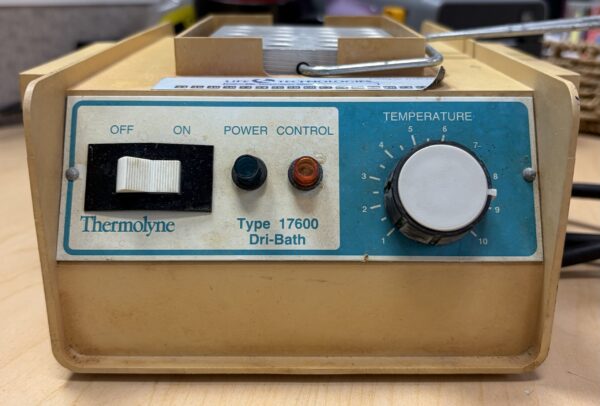

The Thermolyne Dri-Bath, Type 17600, Model DB17615, is a single-block modular dry bath test tube incubator designed to provide a controlled, dry-heat environment for test tubes containing in vitro diagnostic specimens or samples. Rather than using a liquid bath, it heats a removable aluminum block, transferring heat directly to test tubes for constant, precise temperature control. It’s built with interchangeable blocks to accommodate a range of tube sizes, making it a flexible option for clinical, microbiological, and general laboratory use. Model DB17615 specifically is the 120V version within the Series 821 family (which also includes 100V, 220V, and 240V variants).
Features:
- Dry Heat Design: Adjustable thermostat energizes an element beneath a thin-wall aluminum plate, transferring heat to the block resting on it for precise, constant temperatures
- Interchangeable Blocks: Compatible with a range of removable heat blocks for different tube sizes and volumes, including microtube adapters
- Adjustable Temperature Knob: Manual dial control for precise temperature setting
- Safe Block Handling: Includes a dedicated handle for removing hot blocks without burn risk
- Sterilizable: Can be sterilized using ethylene oxide sterilization
- Compact, Modular Housing: Simple, single-block bench top design suited for space-limited lab areas
Specifications:
- Voltage: 120V
- Current: 0.63 A
- Wattage: 75 W
- Frequency: 50/60 Hz
- Operating temperature range: 25°C to 115°C
- Temperature stability: ±0.7°C
- Ambient operating range: 20°C–24°C (68°F–74°F)
- Well depth (standard): 48 mm
- Compatible blocks: Multiple options, e.g. BK165X5A (20-well, 13mm tubes), BK165X17A (1.5mL Eppendorf microtubes), BK165X20A (0.5mL Eppendorf microtubes), among others
