Description
Description

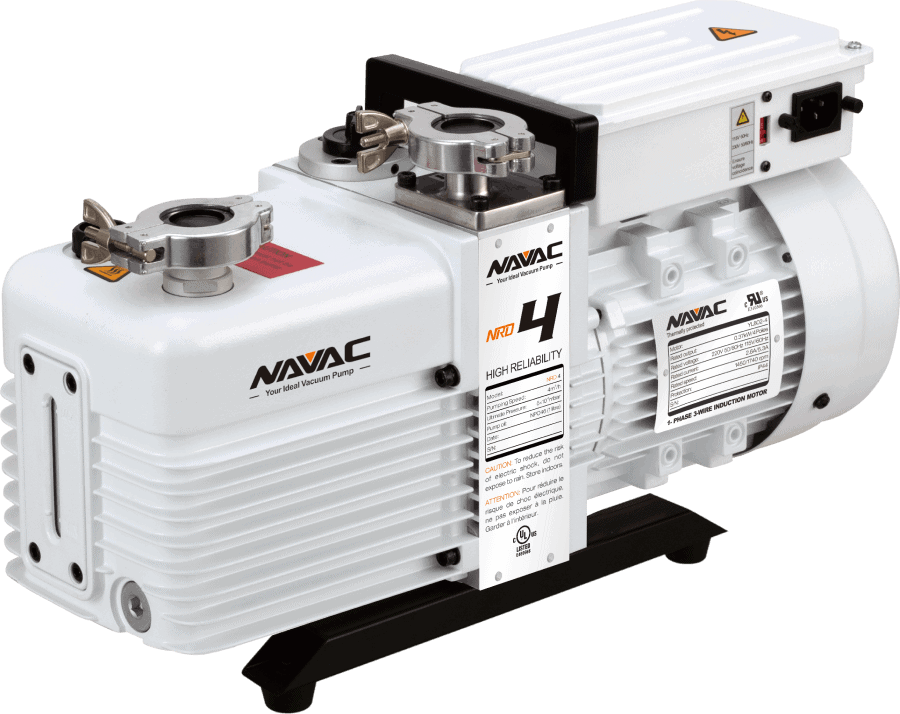

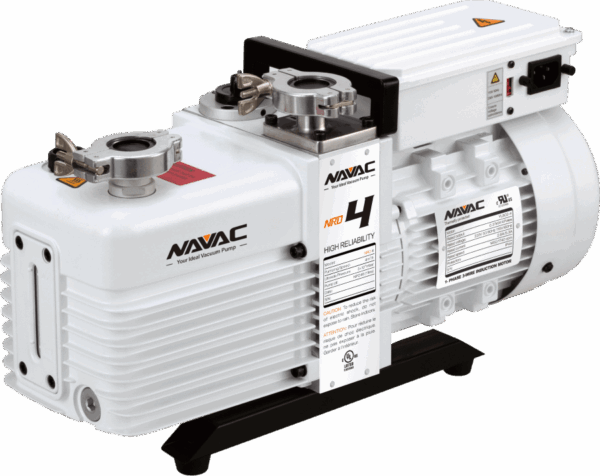

- Dual Stage Oil Sealed Rotary Vane Vacuum Pump
- cUL Approved
- Two Shift Adjustable Gas Ballast Valve
- Anti-suck back Design
- Forced Oil Circulation System
Technical Specification
- Pumping Speed (50 Hz): 4 m³/h (2.3 CFM)
- Pumping Speed (60 Hz): 4.8 m³/h (2.8 CFM)
- Ultimate Pressure without Gas Ballast:
1.5 × 10⁻³ Torr
2.0 × 10⁻³ mbar - Ultimate Pressure with Gas Ballast:
6.0 × 10⁻³ Torr
8.0 × 10⁻³ mbar - Cooling Method: Air
- Inlet / Exhaust: KF16 / KF16
- Noise Level: 52 dB(A)
- Communication: None
- Oil Type: PFPE
- Recommended Oil: 06/6
- Oil Capacity: 1 L
- Motor Power: 0.4 kW (0.54 HP)
- Power Supply: Single Phase, 230 V @ 50 Hz, 115/220 V @ 60 Hz
- Protection Rating: IP44
- Weight: 42 lb (19 kg)
- Dimensions: 18 × 6 × 9 in (445 × 144 × 217 mm)
