Description

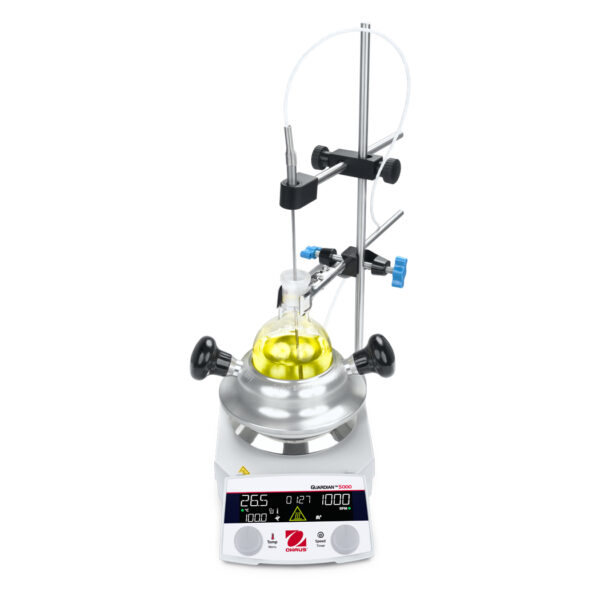

The OHAUS Guardian™ 5000 Synthesis Kits provide a safe, efficient, versatile, and environmentally friendly solution for heating and stirring standard round-bottom flasks. Designed as a modern alternative to traditional oil baths and heating mantles, these kits eliminate the hazards of oil fires, spills, and toxic fume emissions while avoiding water waste and oil disposal hassles. Each kit includes a Guardian™ 5000 hotplate stirrer, a base block, a stainless steel PT1000 temperature probe, a probe holder kit (stand rod, double clamp, and holding arm), and a flask clamp for complete out-of-the-box operation.
Key Features:
- Enhanced Safety: Base blocks feature two heat-resistant handles for safe positioning and removal when hot.
- Uniform & Precise Heating: Superior to traditional heating mantles, the system offers precise, consistent heat distribution.
- Low-Well Block Design: Prevents glassware cracking or jamming while offering exceptional reaction visibility during experiments.
- Durable Construction: Made from 6082 T651 aluminum alloy with a chemical- and solvent-resistant anodized finish that is durable and easy to clean.
- Modular Cost Savings: High-precision machining makes adding or swapping compact insert blocks effortless, removing the need for multiple full-sized base blocks.
- Complete Ready-to-Use Packages: Each kit comes complete with a stand rod, double clamps, a probe holding arm, a PT1000 stainless steel temperature probe, and a flask clamp for immediate setup.
Specifications:
- Block Material: 6082 T651 Aluminum Alloy
- Block Working Temperature Limit: 300°C
- Hotplate Stirrer Temperature Range: Ambient 5°C to 360°C
- Temperature Readability & Increment: 0.5°C
- Speed Range: 50 to 1800 rpm
- Heating Power: 600 W at 120 V / 656 W at 230 V
- Electrical Supply (50/60 Hz): 100–120 V, 8 A / 220–240 V, 4 A
- Included Temperature Probe: Model 30500590 Stainless Steel Probe, PT1000 (Class A), $-40text{ to }400^{circ}text{C}$
- Included Probe Holder: Model 30973298 (includes stand rod, double clamp, and probe holding arm)
- Included Flask Clamp: Stainless steel clamp with 9.5–50 mm grip range, 19 cm arm length, 28 cm total length, and attached double clamp
- Base Block Flask Capacity: 250 mL
- Outer Diameter (with handles): 245 mm
- Outer Diameter (without handles): 162.3 mm
- Max. Flask Diameter: 85.4 mm
- Base Block Height: 44.2 mm (excluding bottom feet)
- Depth of Block Recess: 62.2 mm
- Block Weight: 2.22 kg
- Optional Block Inserts Capacity: 25, 50, 100, 250 mL (These are to be purchased separately)
