Description

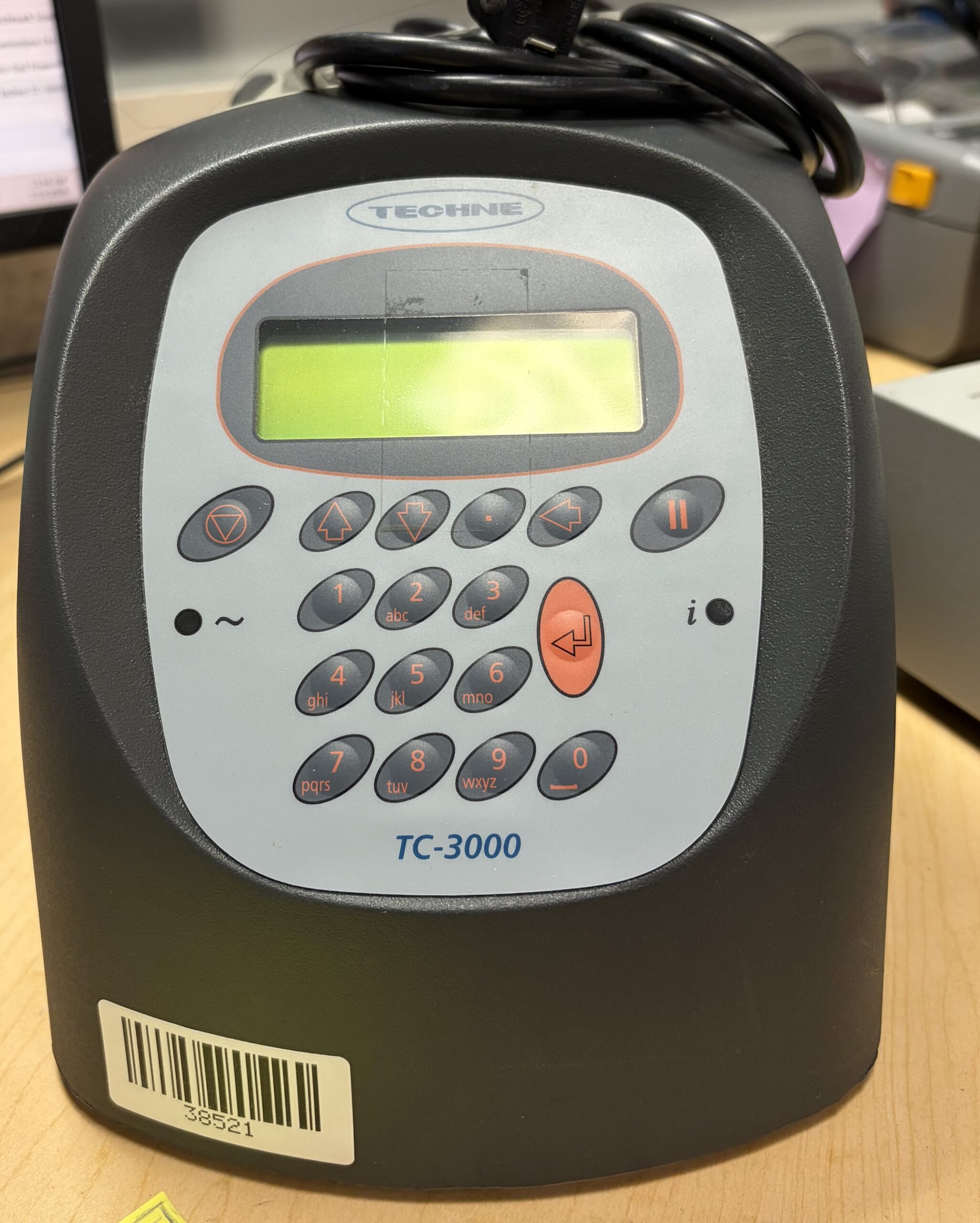

The Techne TC-3000 is a compact, low-cost thermal cycler designed with research and teaching laboratories in mind, offering reliable PCR performance without the complexity or expense of higher-end systems. Techne has been manufacturing thermal cyclers since 1987, and the TC-3000 reflects that experience, combining fast Peltier-based heating and cooling with a small benchtop footprint. The FTC3/05 model specifically refers to the version fitted with the 20 x 0.5 mL microtube interchangeable block, distinguishing it from the FTC3/02 variant, which uses a 25 x 0.2 mL block. It’s built for straightforward, everyday DNA amplification work rather than gradient optimization, making it a practical choice for routine PCR runs in space-limited labs.
Features:
- Interchangeable Blocks: User-swappable blocks (tool required) to switch between 0.5 mL and 0.2 mL tube formats
- Fast Peltier Heating/Cooling: Ramp rates of up to 3.6°C/sec for quick thermal cycling
- High Block Uniformity: Typically ±0.1°C at 50°C for reproducible results
- Adjustable Heated Lid: Selectable 100°C–115°C range, can be enabled/disabled, reduces sample evaporation
- Quick Dial Programming: Fast-track dial for locating saved programs
- Large Program Memory: Stores up to 80 programs with password protection
- 4-Line Alphanumeric Display: Straightforward on-device programming and monitoring
- Auto Restart: Automatically resumes a run after a power failure
- PC Connectivity: RS232 connection via Gensoft software; up to 32 units networkable to one computer
- Compact Footprint: Benchtop dimensions of approximately 330 x 185 x 190 mm
Specifications:
- Block capacity: 20 x 0.5 mL microtubes
- Temperature range: 4°C to 99°C
- Max ramp rate: 3.6°C/sec
- Block uniformity (@50°C): ±0.1°C
- Peltier elements per block: 4
- Heated lid range: 100°C–115°C (selectable)
- Number of programs: 80
- Display: 4-line alphanumeric
- Dimensions (L x W x H): 330 x 185 x 190 mm
- Power: 115V/230V (variable voltage selector)
